Class 6

class6Winner

Security / Comfort / Performance Finally combined !

You no longer need to chose between, Charter catamaran offering Comfort with bad sailing capacities, or Performance catamarans with very limited comfort. Class 6 finally offers both worlds.
Thanks to the innovative central Wave Piercing (“Spine Concetp”), you enjoy an XXL 44m2/475sqft living area on platform, ready to customize your style. More than space, this wave piercing device enhance security, offering more buoyancy to keep the bow up
.
ʻʼUnquestionably, O Yachts fills an otherwise unoccupied niche – for the moment – in the world of luxurious and ultra fast catamarans. Its Class 6 manages to combine speed, ease of handling, and safety, in a living space previously reserved for big cruising boats.ʼʼ Comment from Multihulls World sea trial
Clic on below link to get option pricing and configure your Class 6. You will realize we are also competitive with pricing..


Genesis

Class 6 comes from the collaboration between Dan LEVY & Laurent BOURGNON. We wanted create the largest catamaran Designed for a couple to go sabbatical without a skipper.
Security becomes factor #1. “Spine Concept” is the exclusive answer



Laurent_Bourgnon_Dan_opt-800x740 (1)


Spine Concept  to offer comfort & security

Security :
  • Reduce the impact in waves by driving water into the two tunnels wihtout any sharp angle.
  • Additonal buyancy from the Spine keeps the bow up.
  • Extra rigidity from full carbon (stern to bow).
  • Extra hull. The Spine becomes a third hull in gales.
Comfort :
  • We place the mast ideally centered without scarifying living area.
  • Greatly improved sea motion


Spine Concept / How to

Classic catamarans use transversal bulkhead to spread the mast load. Forward of bulkhead is deck, back of bulkhead is saloon area. To offer comfort, Charter oriented catamarans move this mast bulkhead forward, where performance catamarans keep it centered.  Spine Concept allows us to perfectly center the mast as we do not use transversal bulkhead but carbon longitudinal beam.
Benefits
• Greatly improved sea motion
• Manageable main sail (same as 53ft)
• Huge living area


Luxury is Space

44m2/475sq.ft on wetdeck – 100% Custom Interior
Create your own layout for :
  • Forward Cockpit
  • Saloon/Kitchen/Chart table area
  • Cockpit

Endless layouts

Feel free to express yourself
We build the interior and layout of your choice after the hull and deck have been infused. Owner, family and friends will feel like home with an interior that reflects your style.
Perfect finish
We use skilled sub contractors to supply quality leather sewing (car industry), hand made anodized aluminium, talented carpenters … All panels and furnitures are made with unique O Yachts «savoir faire» to keep weight down.

3 steps to create yours

Step 1 : O Yachts create 2D plans from discussions
Step 2 : Professional Interior Designer (from Finland) after discussions create complete 3D to give you realistic render for approval
Step 3 : O Yachts create your interior from 3D to 2D CNC and skilled craft man.

Living space

An apartment with sea view
On average cruising boat spend 90% of their time at anchor
Thanks to the Spine Concept and the centered mast, we can exploit the area forward of the mast to create a large living space with a dining area, a chart table or a sofa lounge. We can even raise the floor in part of all of the interior cockpit to offer you unobstructed views to the sea. Your imagination is the limit. The huge volumes offered on the main deck gives you ample space to create large and separate areas for your galley, chart table, dining and lounging areas



Cockpit area

Unrivaled space in its category . So many options for cockpit :
  • Table any size
  • Lage bench with lockers
  • BBQ & Sink
  • Stairs to steering… .

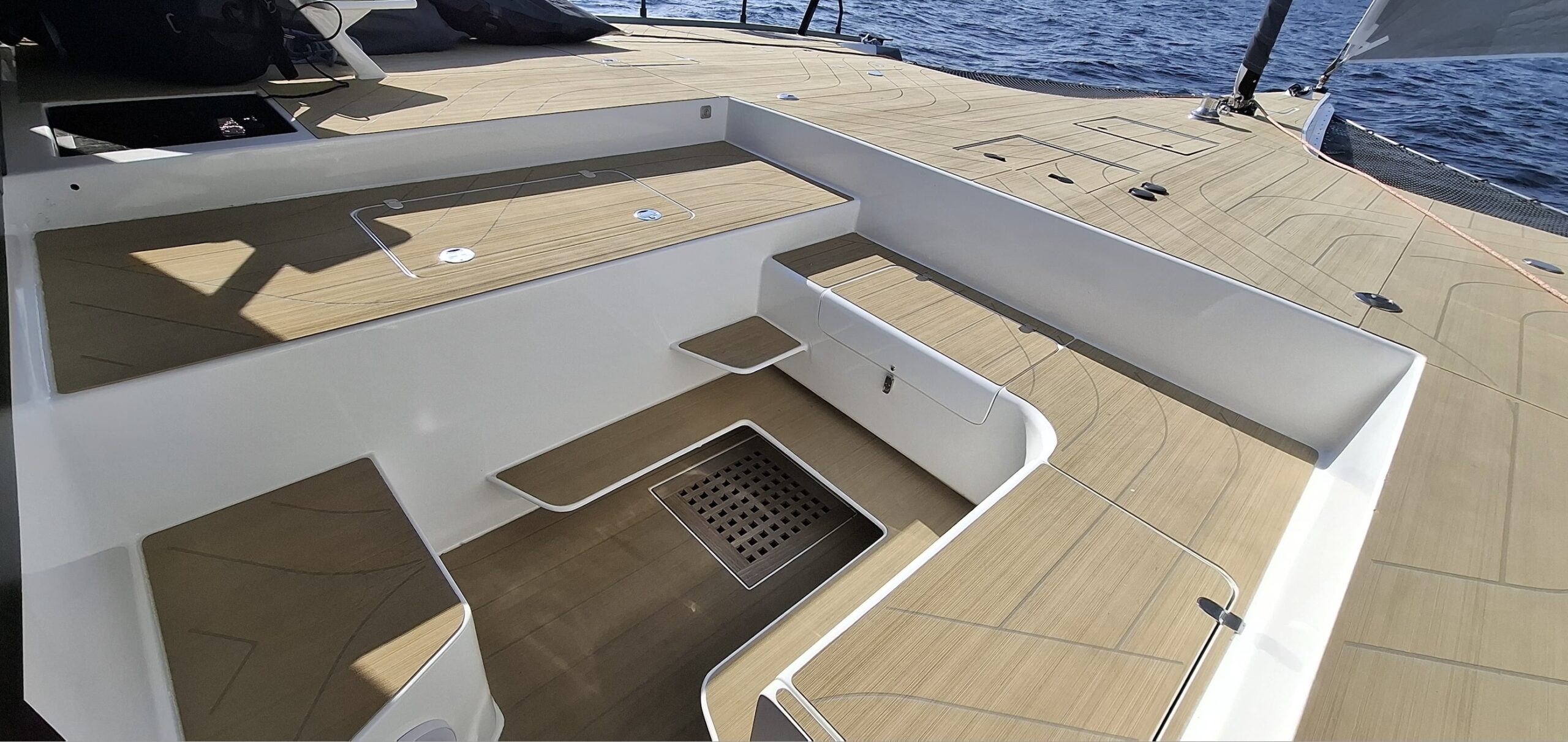

Forward cockpit

Design your own Options
  • Seats
  • Bench with lockers + seats
  • Table
  • Stairs to steering… .

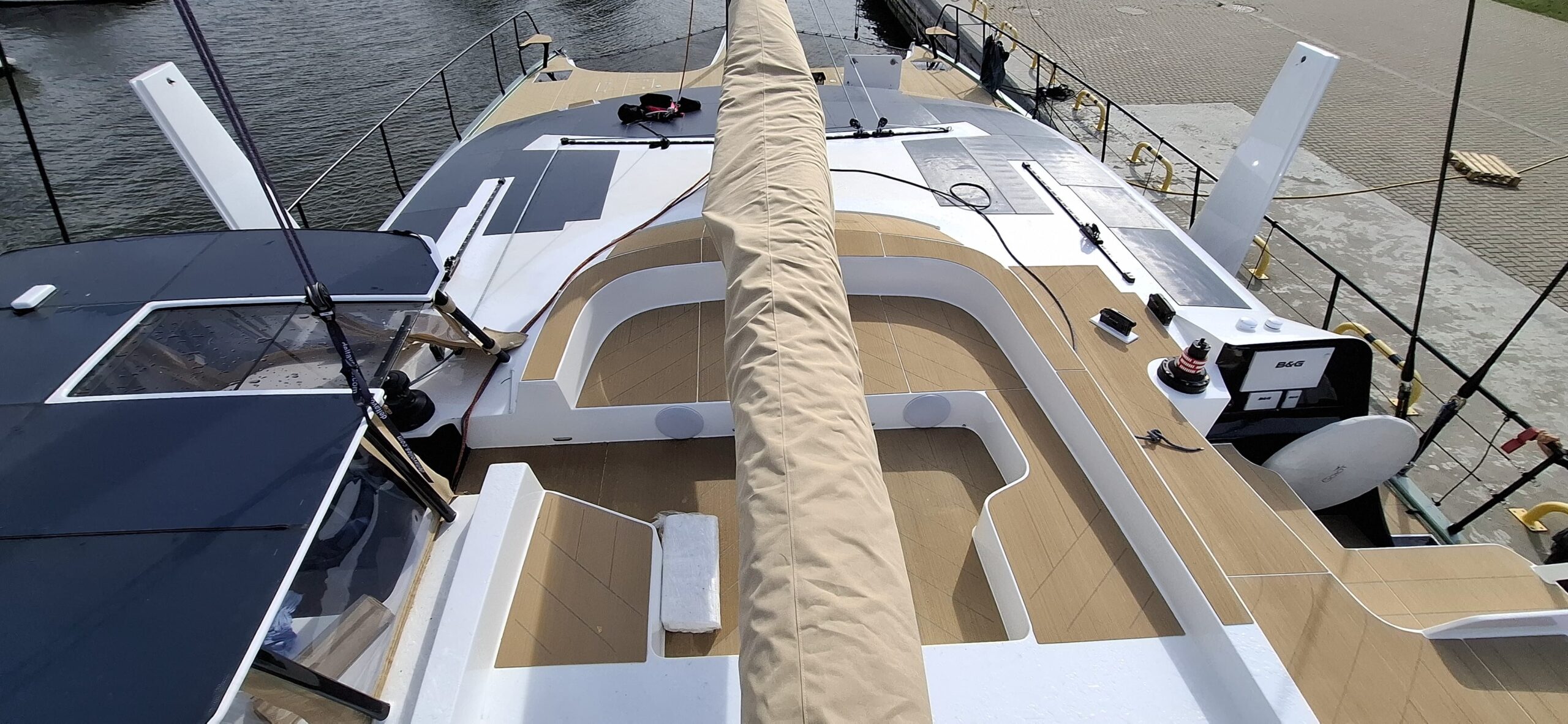

Flybridge

For those who like to relax.
At your request, we can build a full carbon flybridge without compromising the performance of your catamaran. Two design options are offered.
Flybridge Lounge
You can stay seated or tanning when sailing. You can stand up only at anchor or marina. This option is perfect for pleasure oriented catamarans.
Flybridge Sun bed area
In this option you have large sun bed area with full carbon wind protection around.



Appendages Keel or Daggerboard

Daggerboard pro
  • Better upwind angle about 5% gain.
  • Better overall performances due to minimized drag about 4%. •
  • Positive lift with asymetric curved daggerboard option
Keel pro
  • Free payload. Following Archimedes Principle, the additional volume offered by the keel pushes the boat up, allowing extra payload while keeping the boat in its lines..
  • Almost as efficient as a vertical daggerboard with 13kts wind.
  • Very simple compared to daggerboard management.
  • Good protection for propeller & rudder.
  • Possibility to land (easy repair).
  • More space for interior as you have no daggerboard casing.
Appendages Keel or Daggerboard Keel draft1.45m / 4ʼ9ʻʼ Daggerboard draft 1.25m / 4ʼ2ʼʼ (Draft may depend upon rudder design)
Class_6__Frontview_Daggerboard



Long transom for Safe boarding

Your private dock. Easy boarding from your tender to your catamaran thanks to our extra long transom that acts as a dock.



Light carbon aluminium platform

Enjoy this option. Simple and great at anchor. Prevent your tender from swinging at sea and fun at anchor. Available for lightweight tenders only.

Amazing performances / Racing pedigree

Two mast options .
Race mast for ultimate performances and be a serious contender for line honors
Performance mast for short handling usage while keeping exceptional performances.
Speed is security With our slim and almost vertical bow flare, the Class 6 is clearly designed for speed. When a strong gale is coming, your best option is to stay ahead of the low pressure system. Only a fast catamaran will let you escape from a bad weather forecast. Class 6 is intrinsically fast ; while most performance catamarans will need huge sail areas to achieve speeds in the high tenʼs, Class 6 will sail at close to 20 knots with a smaller sail area which makes it more user friendly and safer. When pushed, Class 6 can reached speeds over 20 knots easy
PERF-RACE-SAIL-PLAN-1200x864
polar_class_6
SIDEGENAK


Performance easy / Without skipper

Spine Concept with center mast offers 109m2 main sail same as 53ft. That is excellent for solo sailing. You will mainly use forward triangle for Jib / Drifter / Code0 / Gennaker.
  • More velic
  • Simple to use with furlers
Better … we usually propose to reduce Self Tacking Jib and install Drifter forward. This sail is magic with medium wind to sail upwind (sheets tack inside the shrouds for perfect angle). This drifter is easy to launch alone and go faster than wind (6.3kts with 4.8kts wind proven). If you want to even go much faster, you will use Gennaker or Code0 with some help from crew.


SAIL CLASS 6 SOLO

Hydraulic option for solo sailing
Hydraulics powers it all With this option, we use hydraulic to power all systems. We save on weight and we are more efficient than electric. Thanks to hydraulics you can manage Class 6 alone without help(except Genaker and Code0). •In boommainsail furling • Main sail sheet management
  • Boom lift management x 2
  • Mast rotation (rotativemast option)
  • Front sails furling : Jib – Genoa – Genaker
  • •Load pressure management
Winches and windlass remain electric. This configuration has been validated on hull #2.
furing boom



Engines

3 options :
  • 100% Diesel : 2 Yanmar 80hp on sail drive
  • Smart Hybrid : 1 Yanmar 80hp on sail drive + 1 electric engine 20kW
  • 100% Electric : 2 electric engines 20 or 30kW. We recommend to install DC 48V diesel generator for security.



Diesel engines only

4JH80

Smart Hybrid

smart

Electric engines

oceanvolt3-1024x576



Made in Quality

With 13.5T to 15T light displacement, Class 6 is one of the lightest in the world for its category. Weight is key to offer pleasure and security at sea.
CARBON Structure : with O Yachts quality is not an option, structure is always carbon.
  • Spine (32 layers of carbon!)
  • Bulkheads
  • Mast pilar
KEVLAR Shield : Hulls are also Kevlar shield reinforced from center to bow, 8 inchs over the waterline.
Hand Lamination : All non structural panels (floors, sofa, kitchen, stairs, cabinets…) are made from infused panels, then connected to structure via hand lamination. This are hundred of labor, but this will make your Class 6 solid as a rock.
Quality is not an option. Class 6 are always 100% carbon structure.
Class_6_Carbon_Structure

Below 100% Carbon hull option.
Class_6_Carbon_Hull



Specifications

PERFORMANCE Version
Resin
Vinylester
Fiber
Carbon + Glass + Kevlar
Finish
Gelcoat
Length
63ft
Beam
31ft
Disp. Light
15T
Payload
4.5T
Mast
77.5ft
Main
109m2
Jib
56m2
Drifter (genoa)
105m2
Gennaker
280m2
RACE version
Resin
Epoxy
Fiber
100% Carbon + Kevlar
Finish
Painting
Length
63ft
Beam
29.5ft
Displ. Light
13.5T
Payload
4.5T
Mast
83ft
Main
143m2
Jib
60m2
Drifter (genoa)
123m2
CodeD
265m2
Ask for sea trial from Multihulls World…

amazinglatvian

    Get the Sea Trial for free.

    Choose your language for article



    Vos questions / Nos réponses



    Awards

    Class 6 is “Multihull of the Year 2021” and “Readers Choice”
